2x6 lens TYPEII Medium With Backlight 5050 LED in Horizontal

2x6 lens TYPEII Medium With Backlight 5050 LED in Horizontal

Model: ALST173D12LEDT2WB-H

Diameter: 173.0mm+71.4mm

Height: 9.10mm

Angle: T2M Asymmetric With Backlight

Material: PMMA

Transmittance: >93%

LED Applications: "3535""5050" LED

Lighting applications: Street lighting,Architecture lighting,Area lighting

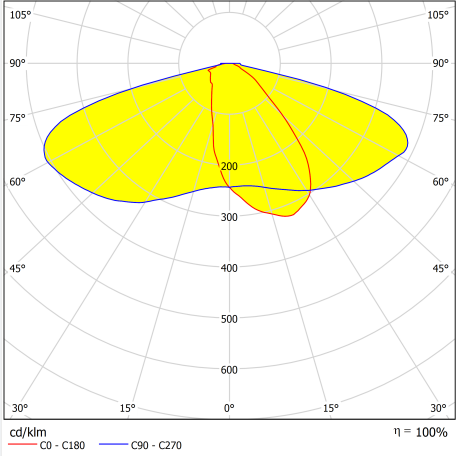

Light Distribution Curve

Street Lighting Lens 1 1
ALST173D12LEDT2WB H

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.

PMMA
