AF series of Single lens

Posted on 2023-03-07 10:41, in New Products Release





Product Feature:

The AF series of single lenses, with a diameter of 21.3mm and a height of 12.35 mm, can achieve light transmission efficiencies of up to 93%.

The PMMA lenses are mounted in a moulded PC holder, which is available for  3030LED/3535LED/5050LED, the one shown on our website is for 3535LED, designed for the LEDs of Cree XPE and Cree XPE2.

AF series single lens:https://www.asahi-optics.com/products/single-lens/af-series-single-lens-22mm-with-3m-tape-option.html

AF series -Single lens 22mm with 3M Tape option

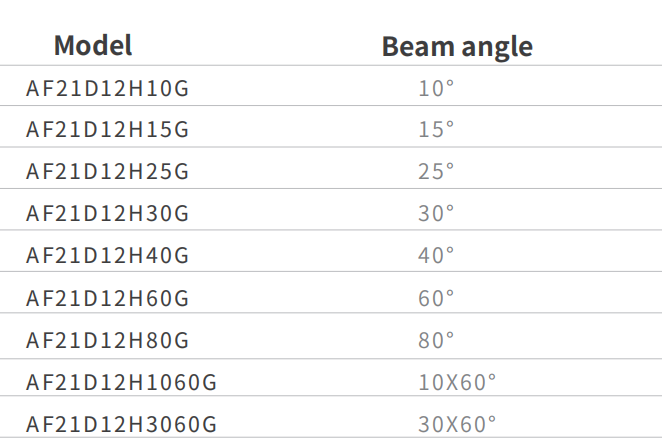

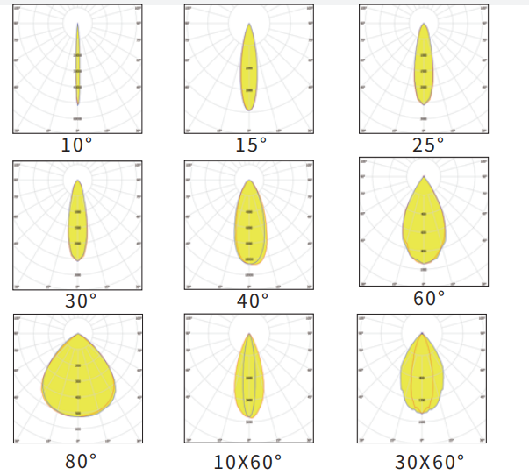

Beam angle:

This lens is available with 3M Tape assembly and is available in the following beam angles.

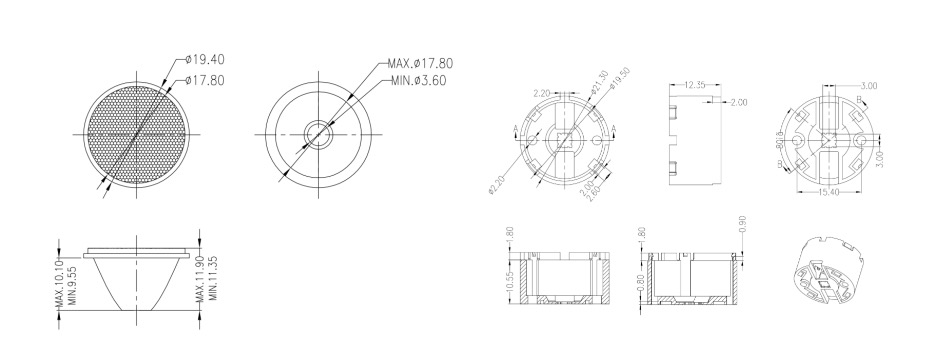

2D Drawing for your reference:

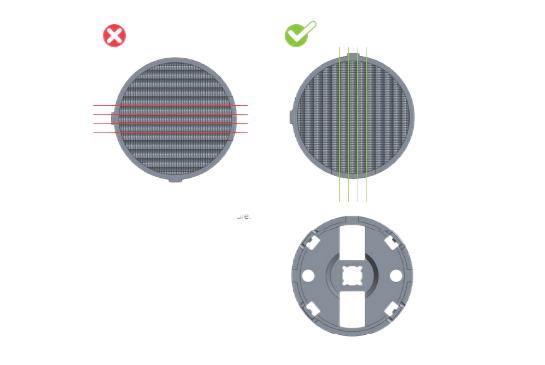

Please ensure that the lens is positioned as shown:

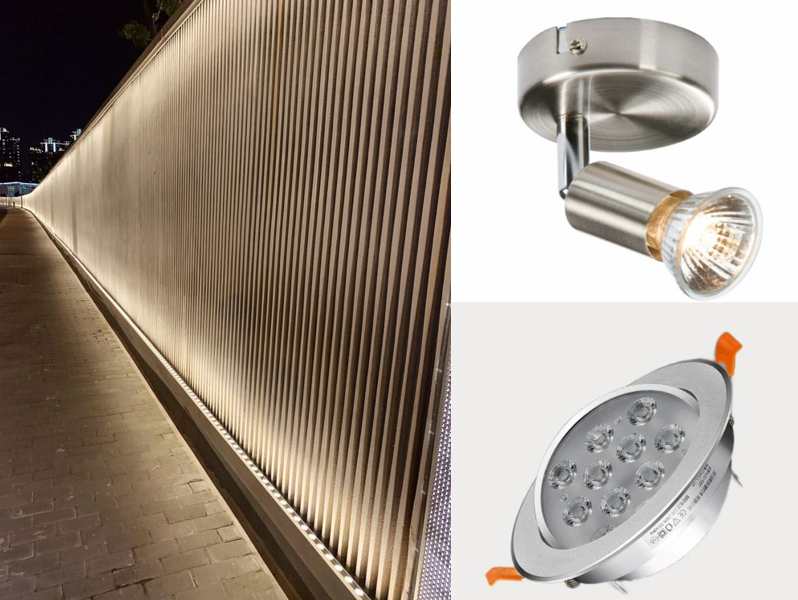

Applications:

Used in indoor and outdoor brightening lighting projects.

The Single lens for wall wash lights, buried lights, jewelry lights, etc.


For more single lenses please click here for your selection:

https://www.asahi-optics.com/products/single-lens/
