Model: AFL16D9H2090G
Diameter: 16.11mm
Height: 8.72mm
Angle: 20x90°
Material: PMMA
Transmittance: >93%
LED Type: LED Cree XP-G4
Lighting Applications: wall washer lighting
1. This 16mm single lens with beam angle 20x90°is widely used in architecture lighting.
2. This 16mm single lens can be tightly fixed on PCB board by fix pins and 3M tape.

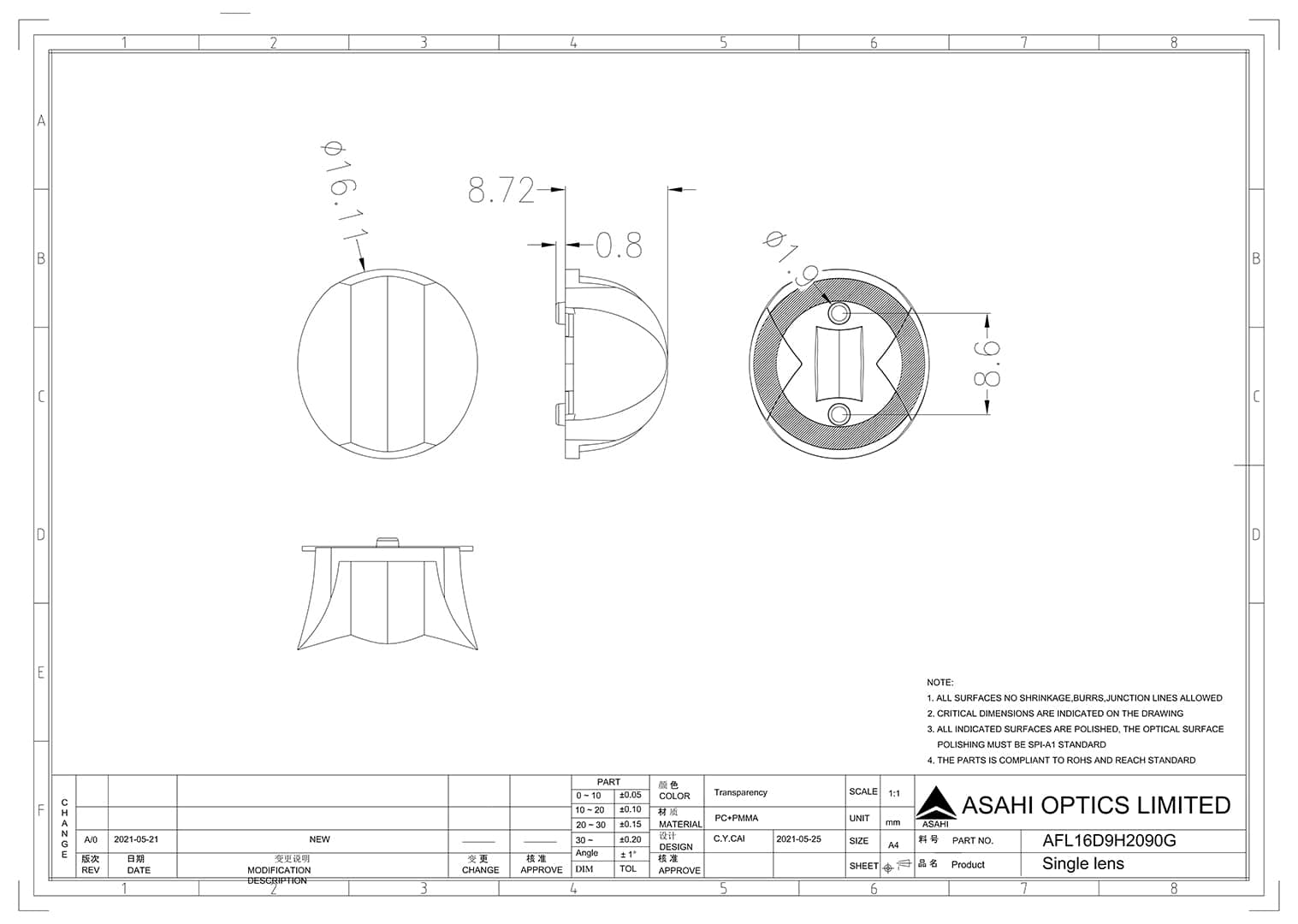

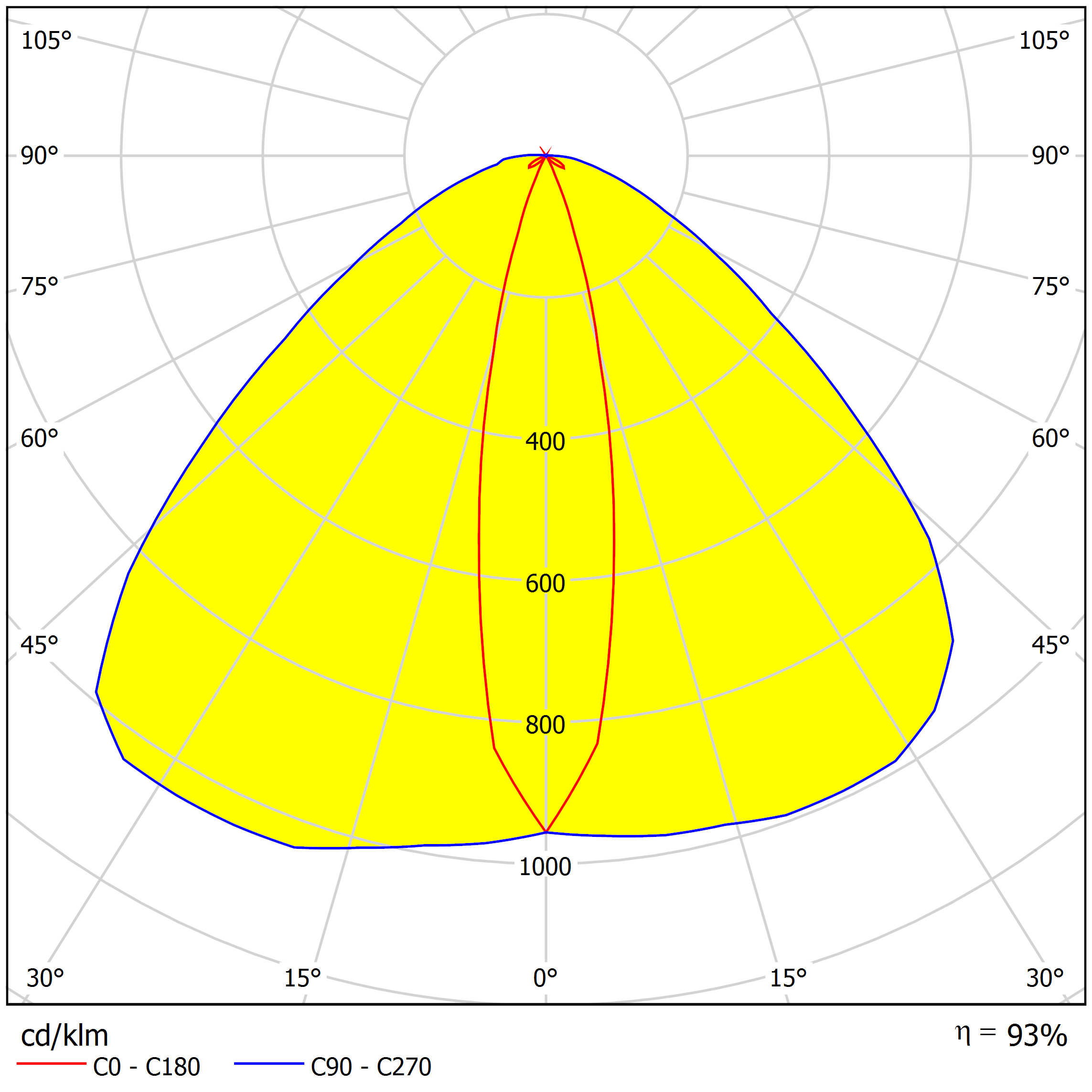

Distribution
Specifications
| Model: | AFL16D9H2090G |
| Diameter: | 16.11mm |
| Height: | 8.72mm |
| Angle: | 20x90° |
| Material： | PMMA |
| Transmittance： | ＞93% |
| LED Applications | LED Cree XP-G4 |
| Lighting applications | wall washer lighting |
LED Type
XPE
XPE2
XP-G2
XP-G3
OSLON SSL80
SQUARE
LUXEON HL4Z
NVSW219GL
PK2E-2LVE-B2R8N
PK2N-4LVE-SBVR8
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
A single lens with a 16mm diameter and a 20x90° oval beam angle is designed to provide a specific oval-shaped distribution of light.
The lens has an oval beam angle of 20x90°, which means it emits light in a specific oval-shaped pattern. The 20° refers to the horizontal angle, and the 90° refers to the vertical angle of the beam.
The lens shapes and directs the light emitted by the LED into an oval beam, providing a focused and elongated distribution of light. This can be useful for applications where you need to illuminate a specific area with a particular shape, such as highlighting signage or architectural features.
The oval beam angle allows for precise and targeted lighting. It can be used to provide illumination in narrow spaces or to emphasize specific objects or areas.
This type of lens is often used in architectural lighting, retail displays, accent lighting, or any application where a specific shaped beam is desired. It can also be used in outdoor lighting scenarios where you need to illuminate pathways, walkways, or other elongated areas.
